Grp sheets and grp rolls by Brianza plastica,
leader manufacturer of fibreglass laminates
elyplast grp sheets and grp rolls
grp sheets for roofing and other applications

GRP straight sheets

Selection of GRP straight sheets

Elyplast product line contains a wide range of profiles which reflects those of the sheets most frequently used for roofings, translucent walls and discontinuous skylights on pitched roofs.

Elyplast corrugated sheets can be curved within certain limits during installation, especially when roofs are not flat (circular, semi-circular, etc.), as in the case of tunnel greenhouses.

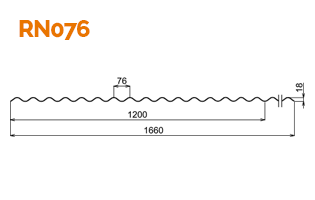

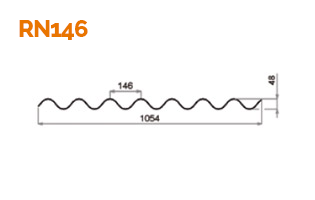

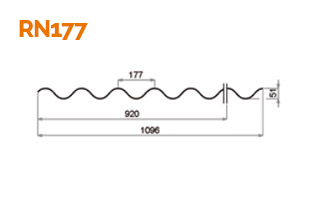

Corrugated straight grp sheets

GRP straight corrugated sheets


GRP straight corrugated sheets GRP straight corrugated sheets
GRP straight corrugated sheets

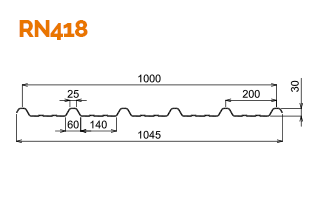

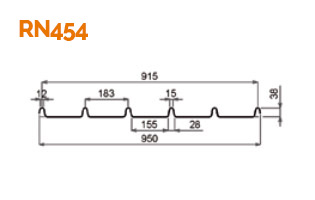

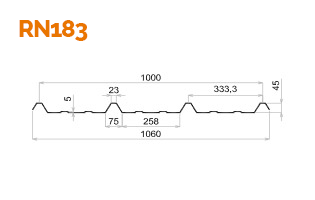

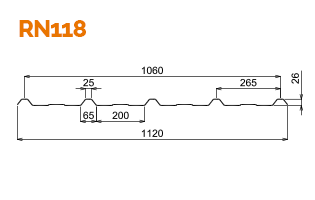

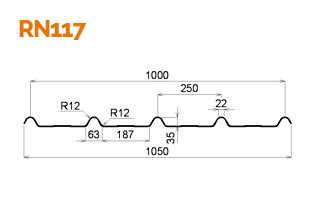

Ribbed straight GRP sheets

GRP straight ribbed sheets GRP straight ribbed sheets
GRP straight ribbed sheets GRP straight ribbed sheets
GRP straight ribbed sheets GRP straight ribbed sheets

Laying of elyplast GRP straight sheets

  • The laying of GRP straight sheets is from the bottom towards the top and perpendicular to the gutter line.
  • Lay sheets longitudinally: opposite to the direction of the main winds.
  • Head overlap: in the case of gradient lower than 7% it is preferable to use sheets equal in length to pitch width (up to 6m), so as to prevent water from flowing back inside in case of heavy rain and of strong wind in the direction of the ridge line. When transversal or head overlaps are foreseen, their length must be that indicated in the table, appropriate to the width of the pitch up to 15 m.
  • Longitudinal overlap: in the case of fiber-cement, it is recommended to allow for the overlap of one wave and a quarter; in case of metal, allow for the overlap of at least a whole wave.
  • Disposal of rain water on low gradient slopes: for slopes between 7% and 15%, the disposal of water may not be ensured if the height of the wave of the corrugated or ribbed sheets is not enough high. In this case it is advisable to use profiles with higher waves.
  • Thermal expansion: the surface temperature may range from summer to winter by more than 50°C; to compensate the increase of length for sheets longer than 3 mt, it is advisable to provide for the clearance of the fixing hole.
GRADIENT (%) HEAD OVERLAP (mm)
7<P<10 250
10<P<15 230
15<P 200

Contact us for our products

If you are interested in GRP straight sheets, do not hesitate to contact us for any request or suggestion. Brianza Plastica is willing to meet specific demands.

CONTACT US
